3. Create Alert

Now you will configure an OpenSearch Alert using the index you created in the last step. First you need to configure the SNS Topic created from the CloudFormation script as an OpenSearch Alert Destination. This will allow OpenSearch to use the SNS destination to send alerts.

Step 1 - Create a Destination

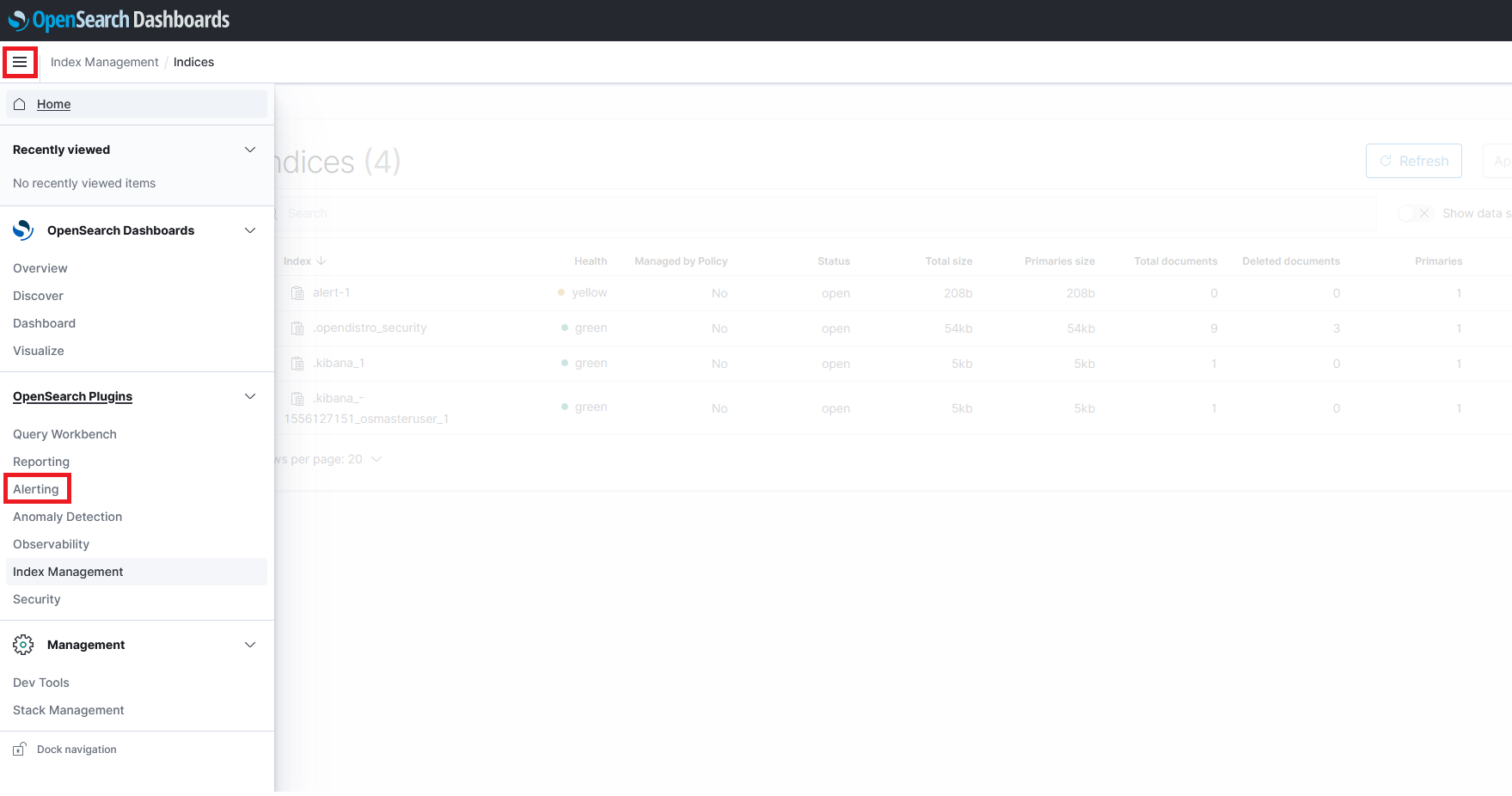

  1. Click on the top left hand menu on the OpenSearch dashboard
  2. Click on Alerting under the OpenSearch Plugins section

os_alert_1

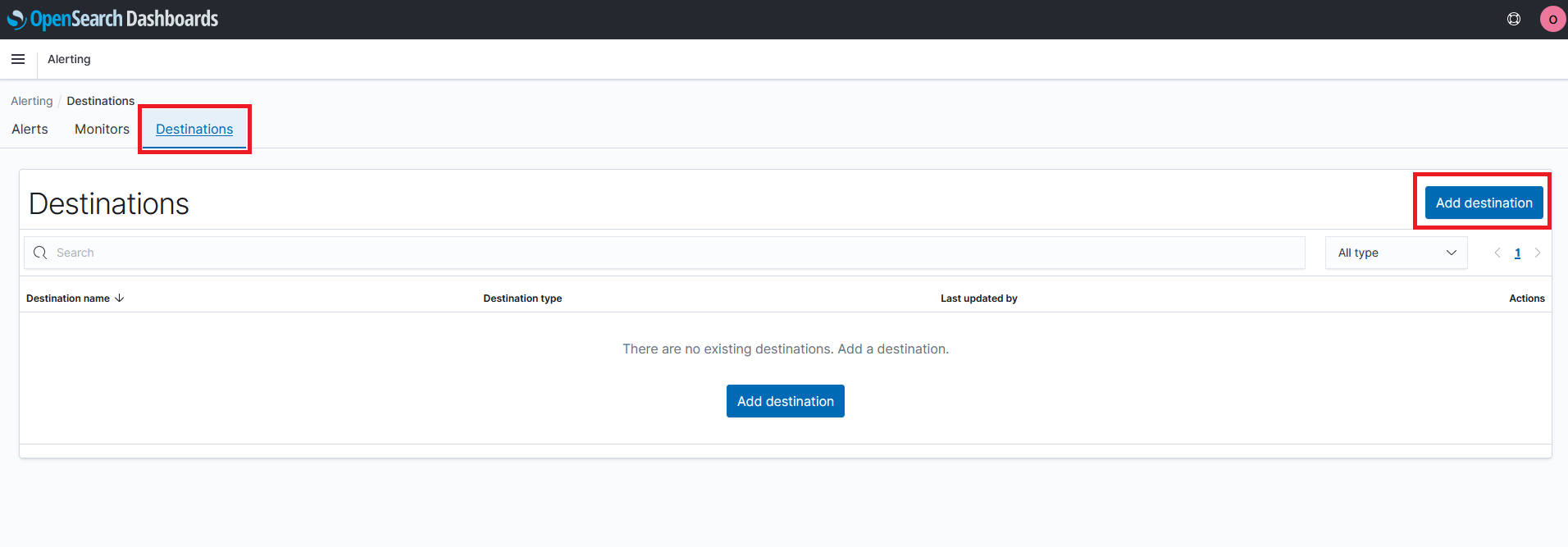

  1. On the alerting page click on the Destinations
  2. Click on Add destination

os_alert_2

On the add destination page configure the destination entering the values for each field in the table below

Field Value
Name SNS Destination
Type Amazon SNS
SNS topic ARN TopicARN value from CloudFormation output
IAM role ARN IAMRoleARN value from CloudFormation output

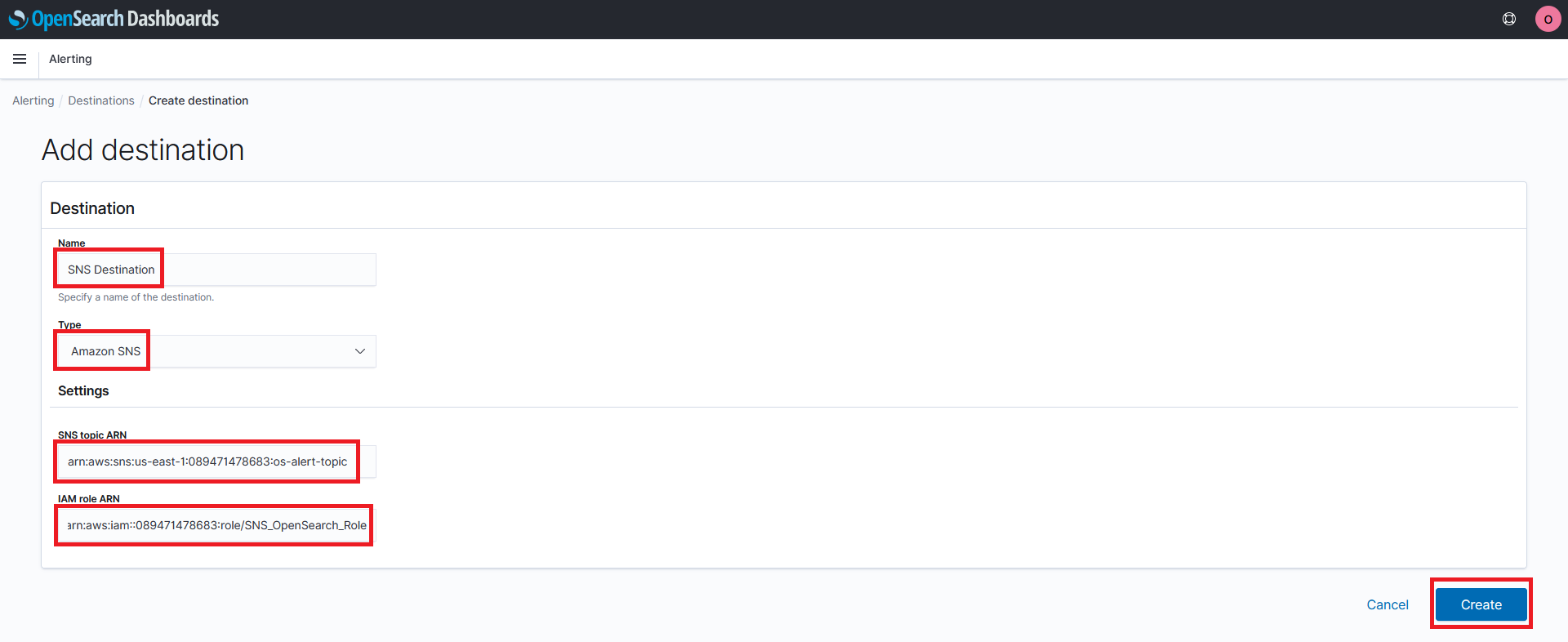

An example destination may look like

os_alert_3

  1. Once you finish configuring the destination click on Create

Step 2 - Set up a Monitor

Using the destination you configured, you will configure a monitor that will trigger an alert if cpu_util exceeds 50.

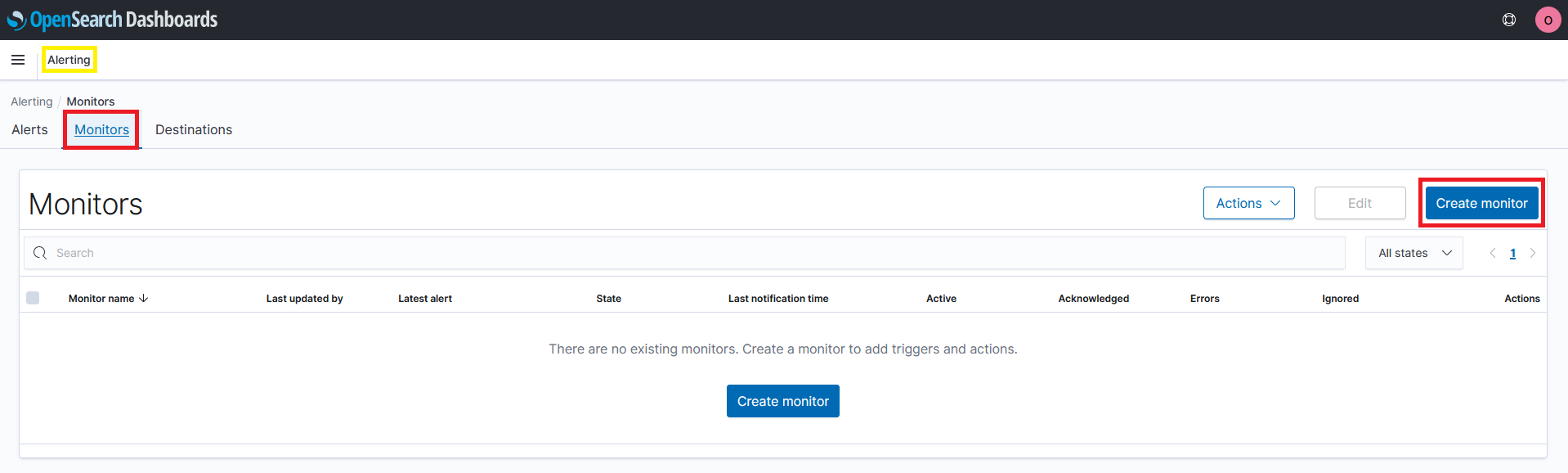

  1. On the OpenSearch alerting page, click on the Monitors tab
  2. Click on Create monitor

os_monitor_1

  1. Fill in the Monitor details and Data source sections with the following values
Field Value
Monitor name High CPU Alert
Monitor type Per query monitor
Monitor defining method Visual editor
Frequency By interval
Run every 1 Minutes
Index alert-1
Time field eventtime

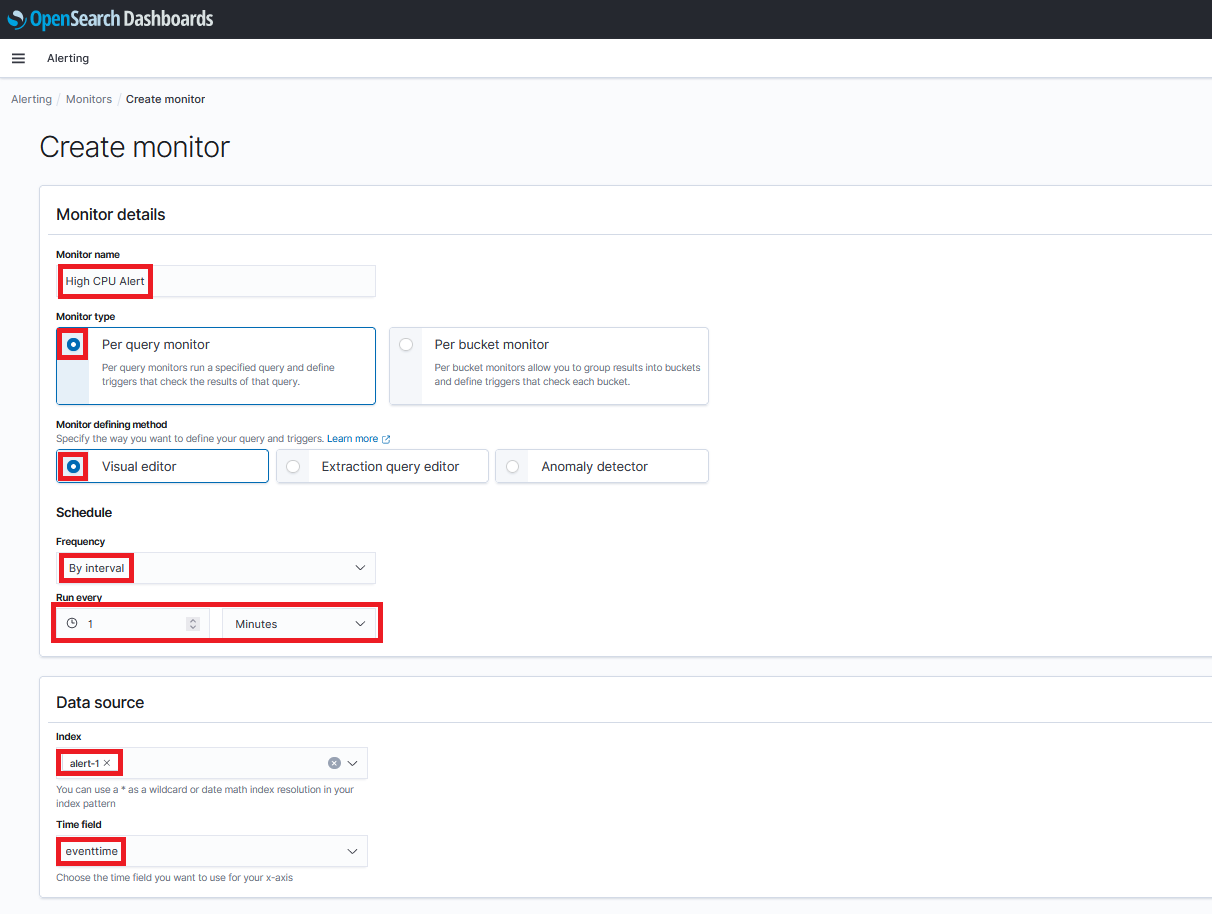

An example monitor details and data source may look like

os_monitor_2

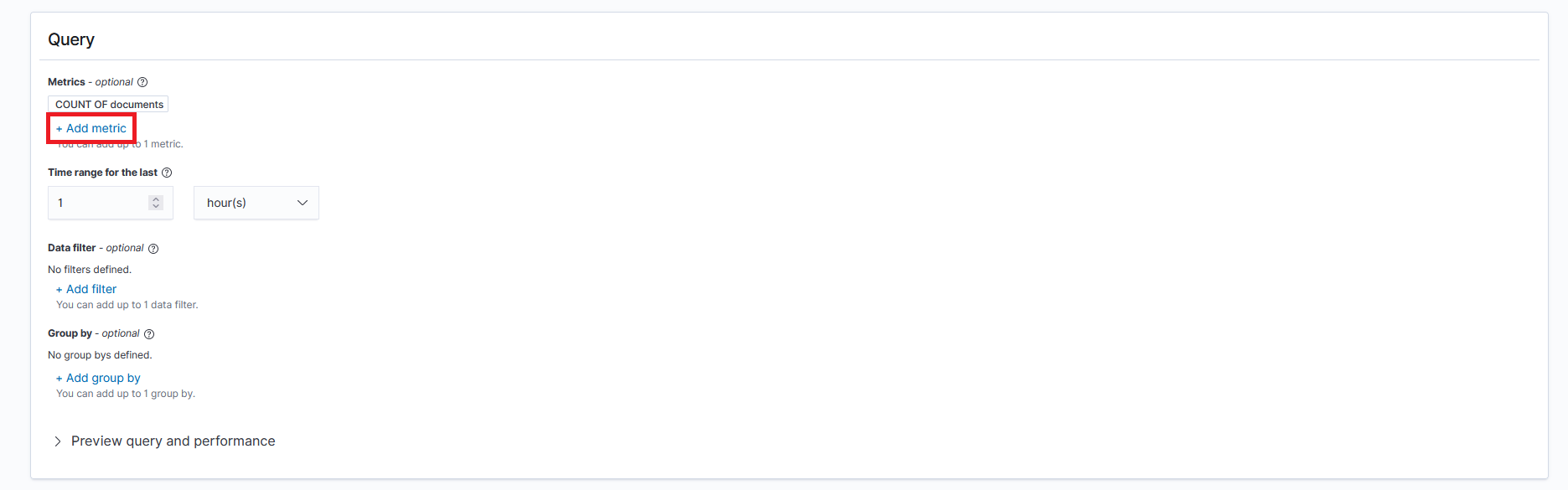

  1. Under the query section, click + Add metric

os_monitor_3

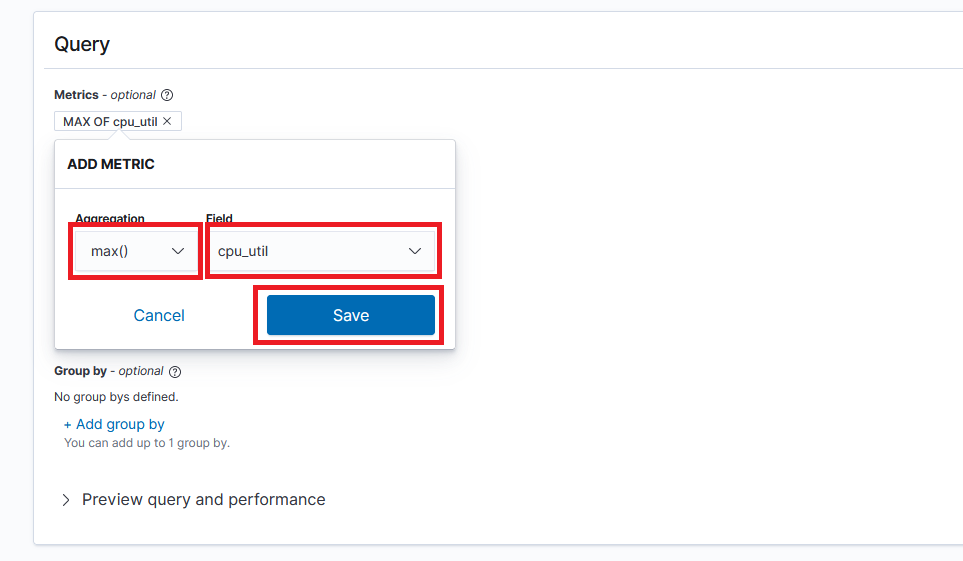

  1. Select max() as the aggregation function
  2. Select cpu_util as the field
  3. Click on Save

os_monitor_4

  1. Under the triggers section, click Add trigger
  2. Fill in the trigger sections with the following values
Field Value
Trigger name CPU over 50
Severity level 1 (Highest)
Trigger condition IS ABOVE 50

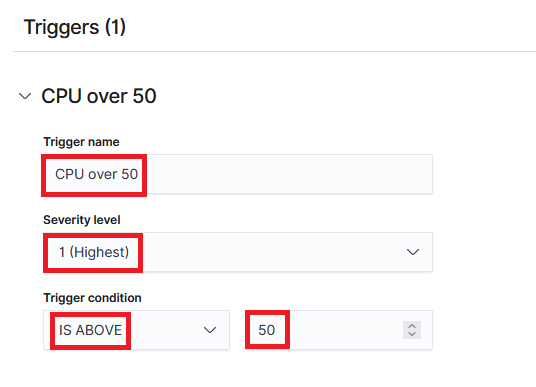

An example trigger configuration may look like

os_monitor_5

  1. For the trigger, configure an Action to send an email to our SNS Topic, fill in the action sections with the following values
Field Value
Action name Email Alert
Destination SNS Destination (Amazon SNS)
Message subject High CPU!
Message Leave default message

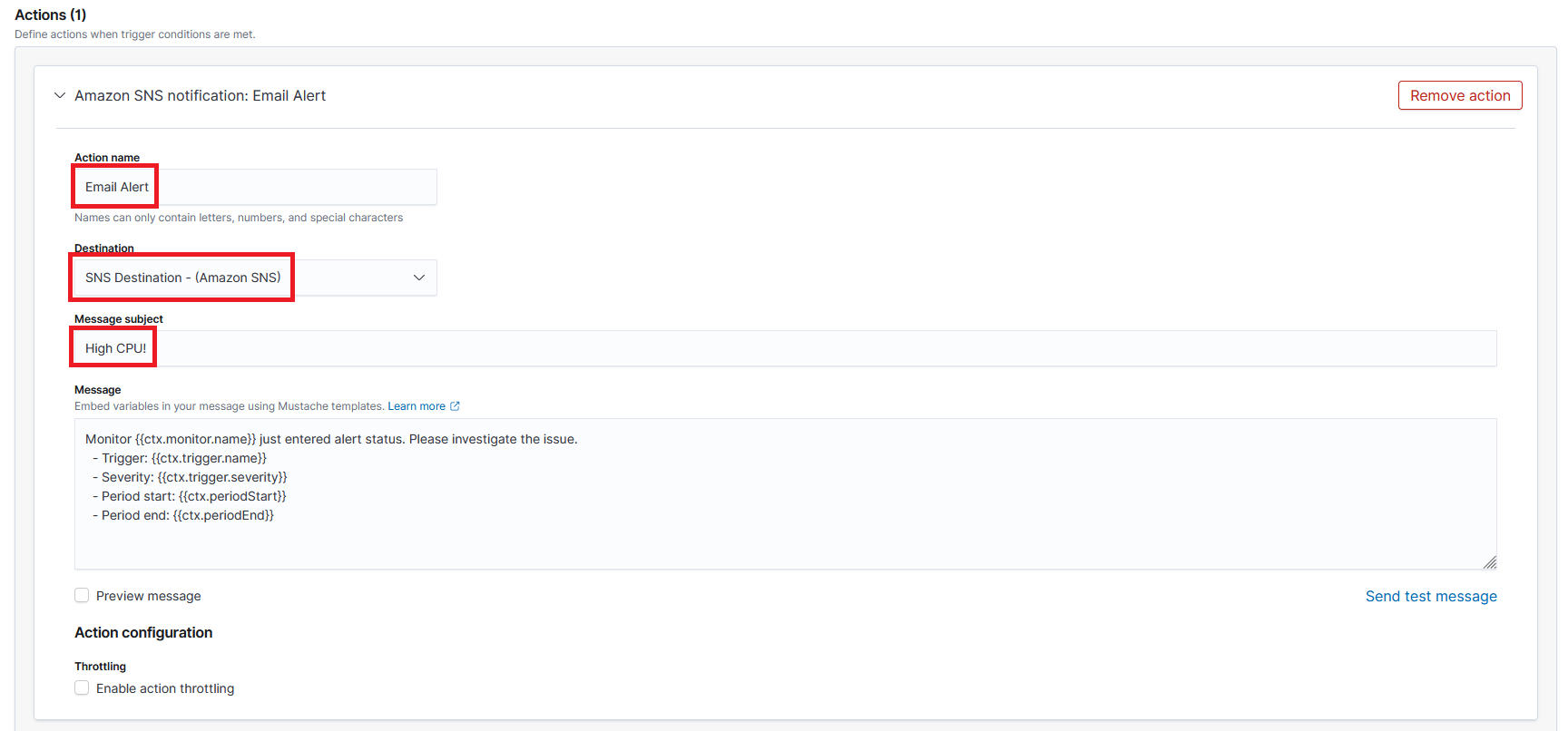

An example action may look like

os_monitor_6

  1. Click on Create

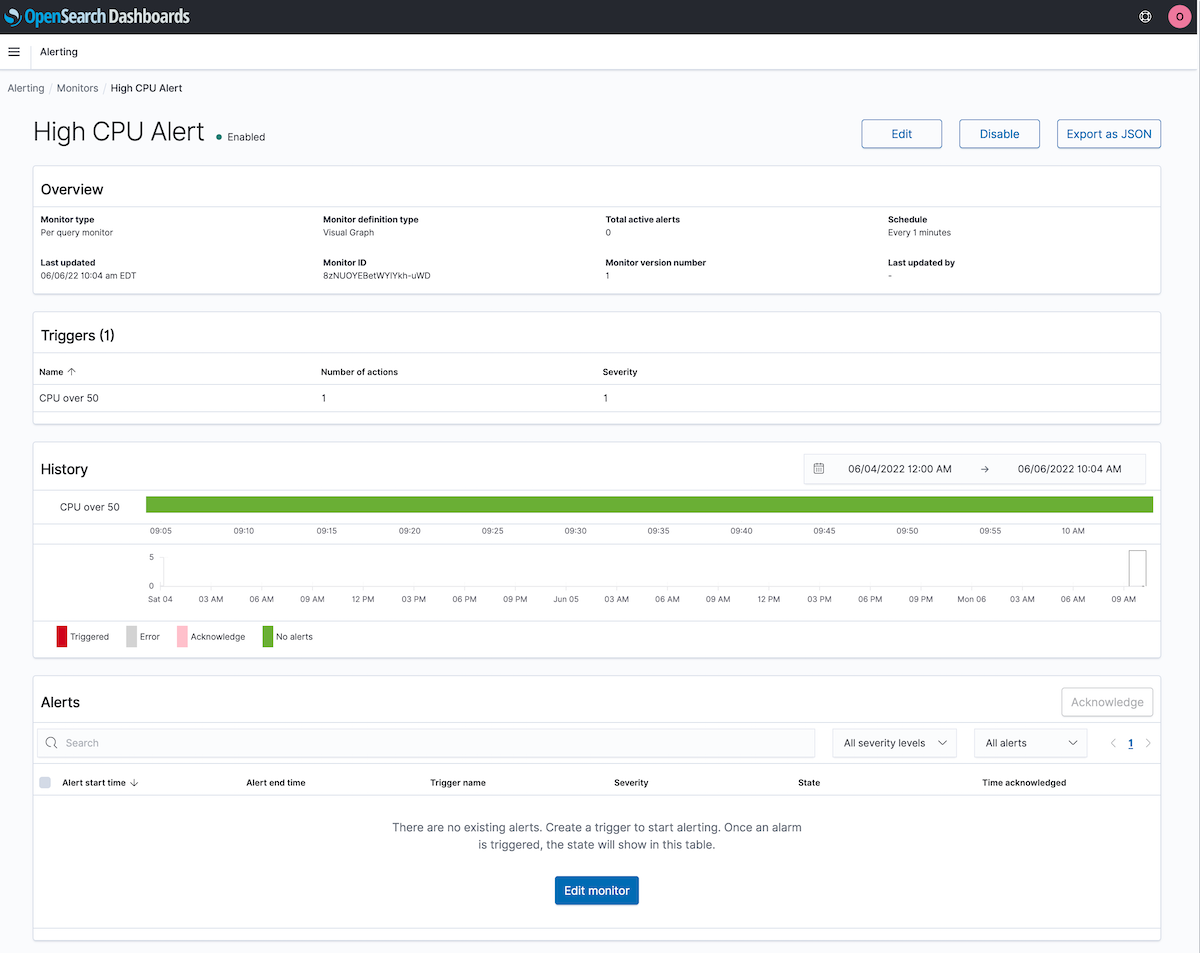

After the Monitor saves, your new High CPU Alert monitor dashboard will be available

os_monitor_7

When you are ready move on, go to the next step Trigger Alert
