4. Test Replication

You will now create an index and replication rule that will copy data from the leader to the follower domain.

Environment Info

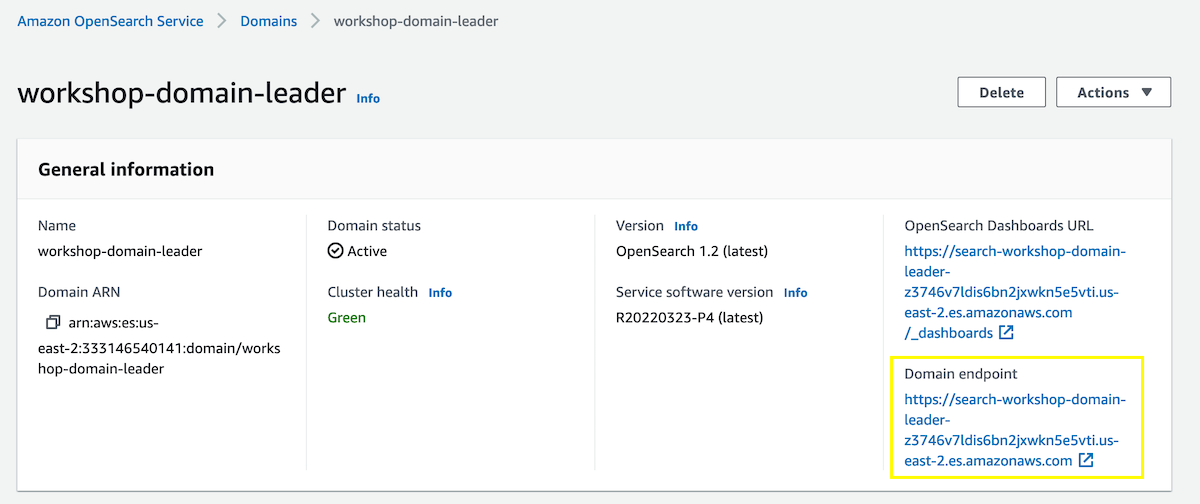

  1. Goto the OpenSearch service page and note the Domain endpoints for both leader and follower domain. cloud9_1

Be sure that the URL does not contain a following forward slash.

Step 1 - Run a Python Application from Cloud9

  1. Navigate to the Cloud9 Console
  2. Click on Open IDE under the already created workshop-cloud9 environment.

cloud9_2

The OpenSearch_API_Examples repository will be automatically pulled down to your environment. Do the following within the Cloud9 console.

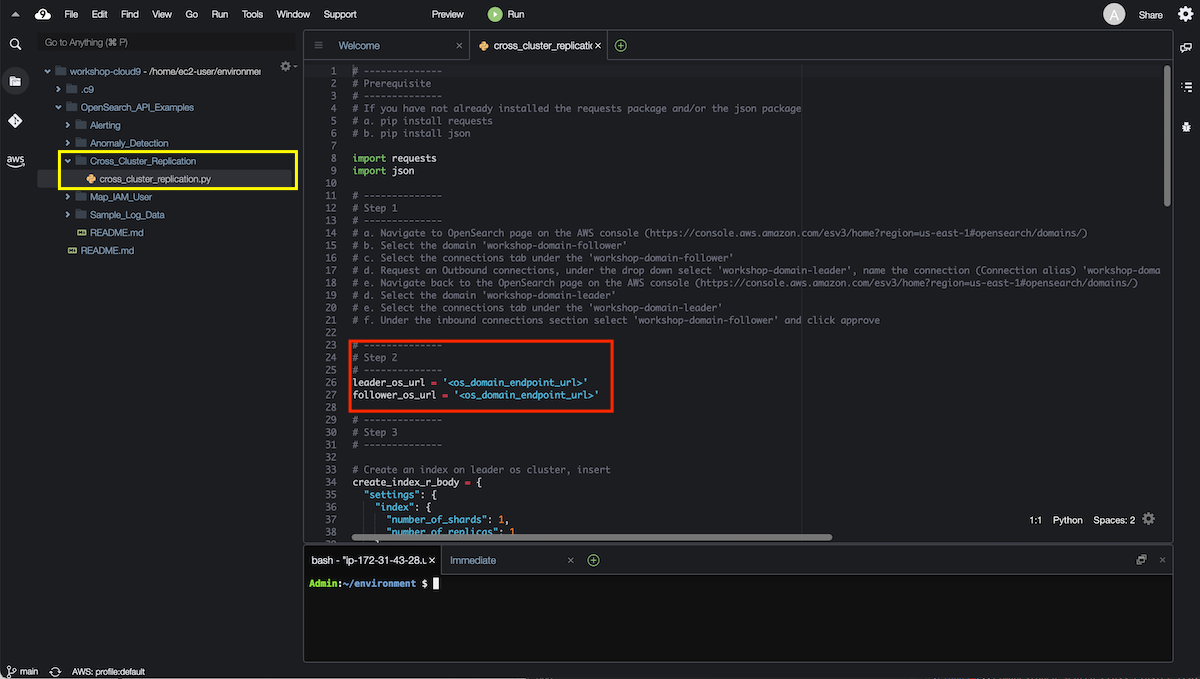

  1. Open the file OpenSearch_API_Examples/Cross_Cluster_Replication/cross_cluster_replication.py
  2. Update the leader_os_url and follower_os_url variables to your OpenSearch domains.
  3. Goto File -> Save to save the changes to cross_cluster_replication.py

cloud9_3

In the terminal window, run the following commands:

  1. pip install requests
  2. python OpenSearch_API_Examples/Cross_Cluster_Replication/cross_cluster_replication.py

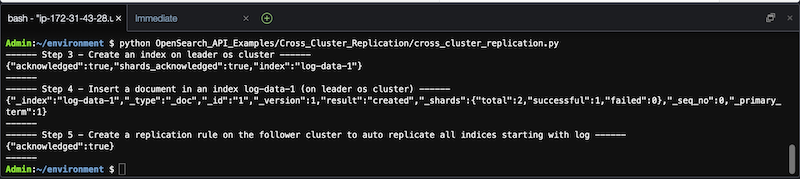

The image below highlights the commands.

cloud9_4

The script creates and index called log-data-1, inserts a sample document, and creates a replication rule for all indexes that start with ‘log’.

Step 2 - Verify Replication

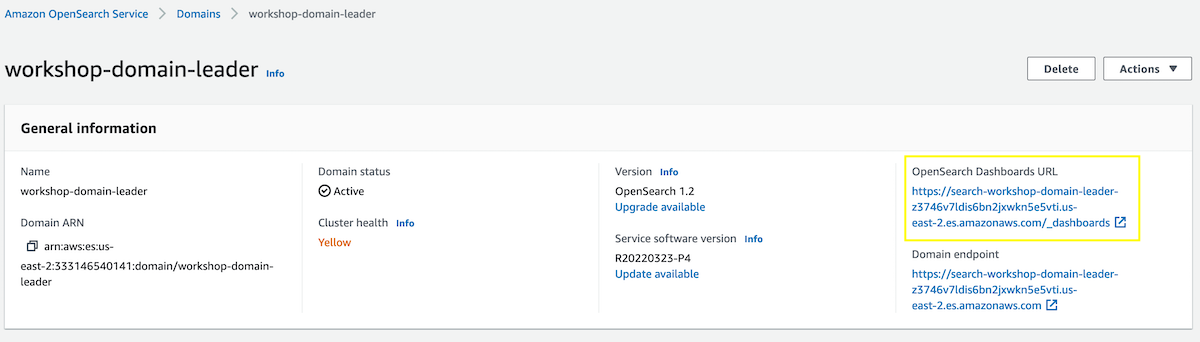

  1. Goto the OpenSearch service page and note the Domain endpoints for both leader and follower domain.

cloud9_5

  1. Open the Leader OpenSearch Dashboard. Once you open the dashboard URL you will be prompted to login.

  2. Enter OSMasterUser as the username

  3. Enter AwS#OpenSearch1 as the password

  4. Click on Log In

  5. If an additional pop up window is present after login asking about data upload click on Explore on my own

  6. If an additional pop up windows is present asking you to select your tenant select Global and click on Confirm

Once you have logged in to the OpenSearch dashboard

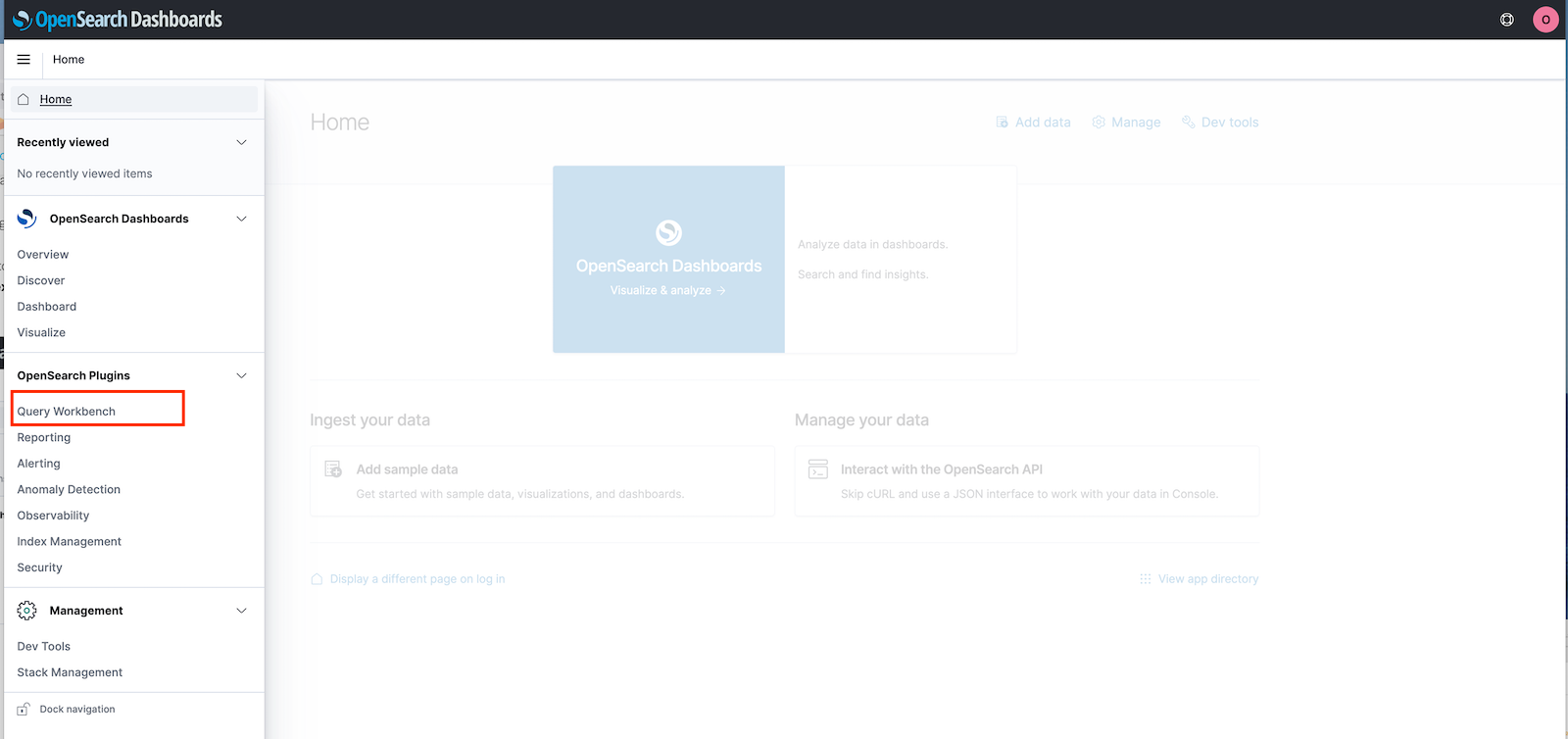

  1. Click on the top left hand menu on the OpenSearch dashboard
  2. Click on Query Workbench under the OpenSearch Plugins section

cloud9_6

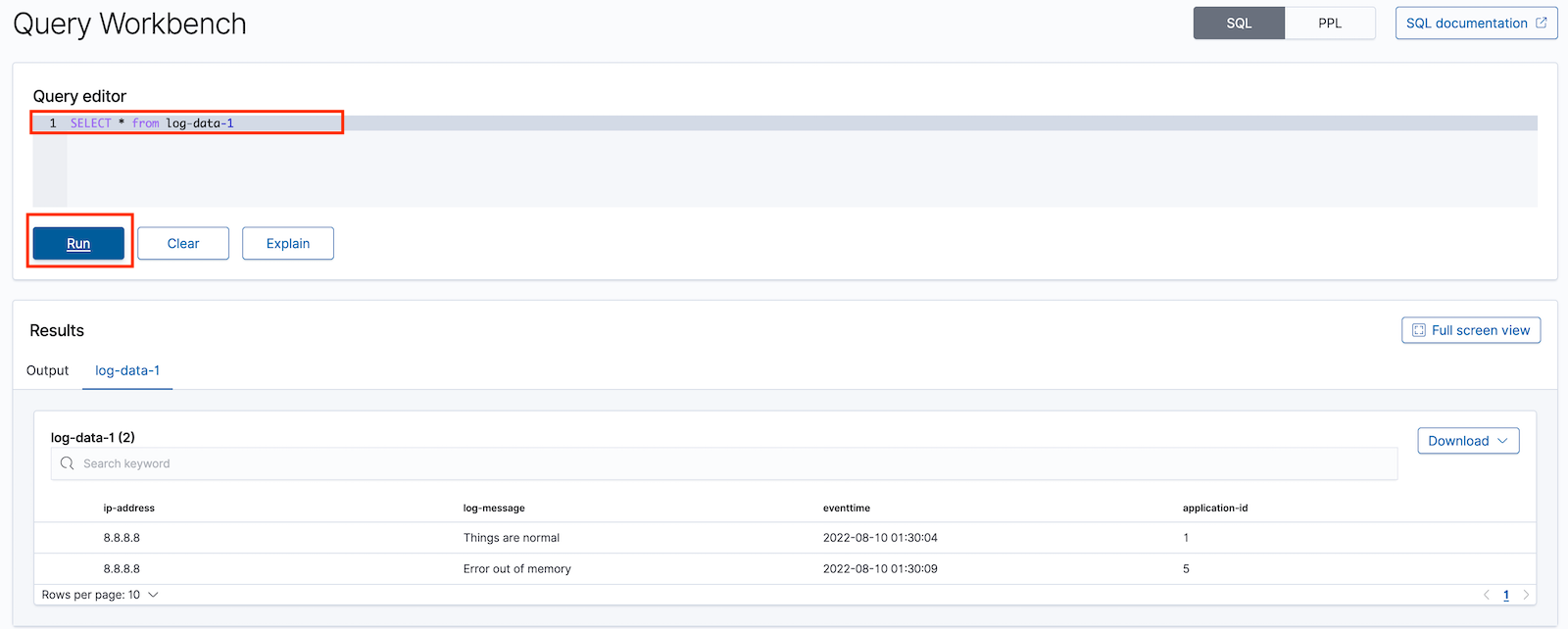

  1. Select the data from log-data-1 using this simple query: SELECT * FROM log-data-1

cloud9_7

  1. Follow the same procedure for the Follower domain.

Observe that the result sets match between Leader and Follower.

  1. Send more data by re-running the Python script and observe the result sets. python OpenSearch_API_Examples/Cross_Cluster_Replication/cross_cluster_replication.py

cloud9_8

When you are ready, proceed to the next step Clean Up if you want to delete the resources you used for this workshop.
