CloudFormation (Automated)

Step 1 - Deploy CloudFormation Template

  1. Right click the Launch CloudFormation Stack button below and open the link in a new tab.

Launch CloudFormation Stack

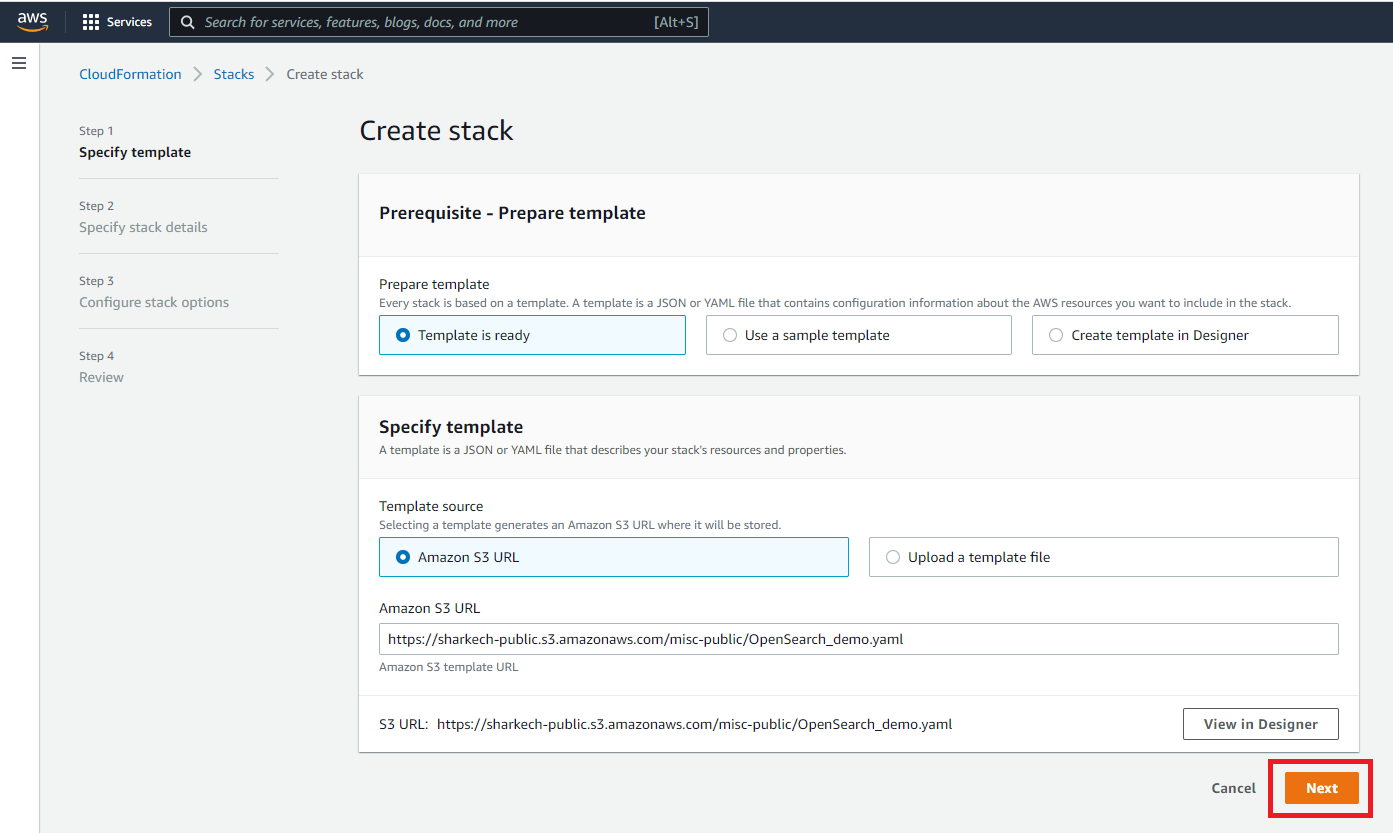

  1. Navigate to the new tab you just opened. You should see a screen similar to the one below

cf_1

  1. Click on the Next button

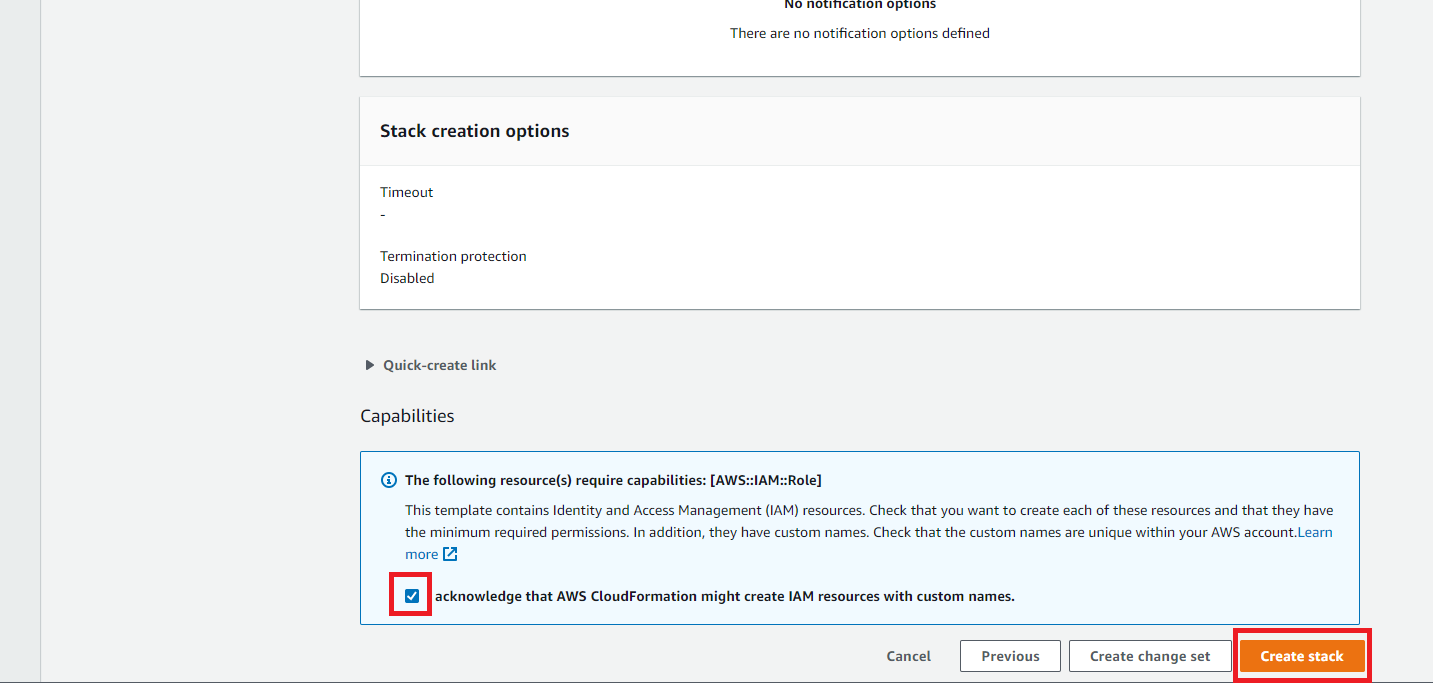

  2. Continue to click on the Next buttons until you arrive at the final review screen. Scroll to the bottom of this page
  3. At the bottom of the page click on I acknowledge that AWS CloudFormation might create IAM resources with custom names
  4. Click on Create stack

cf_2

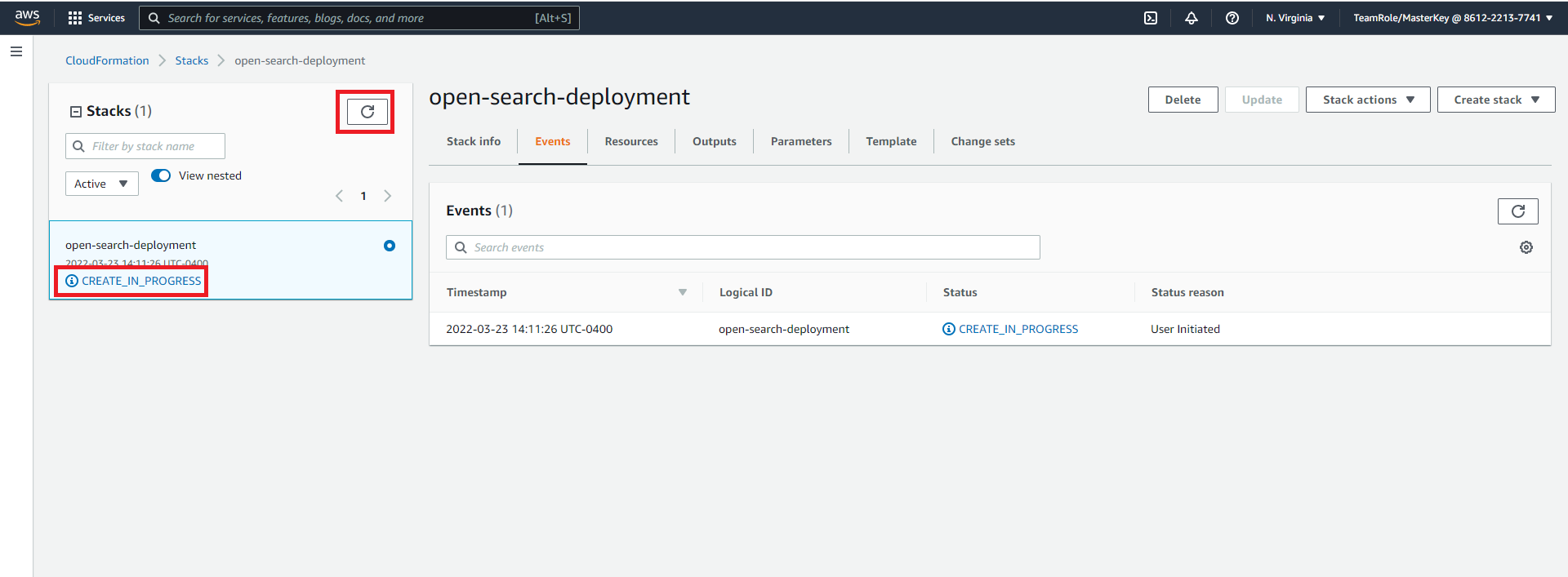

This will begin the process of deploy an Amazon OpenSearch service, Kinesis Data Firehose and Cloud9 environment. You will automatically be redirected to the following screen

cf_3

The deployment will take 5 - 10 minutes to complete. You can click on the refresh button and view the status of the deployment. The initial status will be CREATE_IN_PROGRESS when the status is CREATE_COMPLETE proceed to step 2 below.

Step 2 - Configure Identity Access Management (IAM) Permissions

We now have an OpenSearch domain and Kinesis Firehose created. In order to send logs to OpenSearch via Kinesis Data Firehose we need to grant the IAM role that firehose uses permissions in OpenSearch.

Map IAM Role with OpenSeach Role
  1. Go to the OpenSearch Console
  2. Click on the workshop-domain OpenSearch domain you created earlier
  3. Click on the OpenSearch Dashboard URL. This should open the URL in a web browser window

open_search_dashboard

  1. You will be prompted to log in. Using the user name OSMasterUser and password AwS#OpenSearch1 log in
  2. If an additional pop up window is present after login asking about data upload click on Explore on my own
  3. If an additional pop up windows is present asking you to select your tenant select Global and click on Confirm

You should now see a window that looks like this

select_domain

  1. Click on and expand the hamburger menu on the side bar of the OpenSearch home page
  2. Under the OpenSearch Plugins section click on Security

select_security

  1. On the security page click on Roles from the left hand menu

select_roles

  1. On the roles page search for and click on all_access

search_all_access

  1. On the all_access role page click on Mapped users
  2. Under the mapped users page click on Manage mapping

mapped_users

On the manage mapping page we need to map the IAM role the is used by Kinesis Data Firehose to the all_access OpenSearch role. This will give Kinesis Firehose the permissions it need to create, update indexes and write data.

For the purposes of this lab we will give Kinesis Firehose all_access in OpenSearch.

We need to find the ARN of the IAM role Kinesis Firehose is using. Keeping the Manage mapping page open in your browser, navigate to a new tab and

  1. Go to the Kinesis Firehose Console
  2. Click on the workshop-firehose listed. This is the Kinesis Data Fire hose we created earlier
  3. Click on the Configuration section

IAM_role

  1. On the configuration page scroll down to the permissions section
  2. Click on the IAM role

IAM_role

  1. This will open a new window in your web browser. Copy down the ARN of the IAM role

IAM_role

  1. Navigate back to the OpenSearch map user tab
  2. Enter the ARN we copied in step 18 and paste it in the backend roles section of OpenSearch console page
  3. Click on Map

IAM_role

Our AWS environment set up. When you are ready begin the next step Send Log Data to Kinesis Fire Hose
